Saniflo Macerating & Grinder Pump Systems Malaysia
Create a bathroom or wastewater discharge point in locations where conventional gravity drainage may be difficult with Saniflo macerating and grinder pump systems.
Heap Wah supplies Saniflo pump solutions in Malaysia for residential, commercial and renovation applications. Depending on the selected model, these systems can handle wastewater from toilets, wash basins, showers, baths and other sanitary fixtures.
Whether you are adding a new bathroom, renovating an existing property or looking for a practical wastewater pumping solution, our team can help you select a suitable Saniflo system for your application.

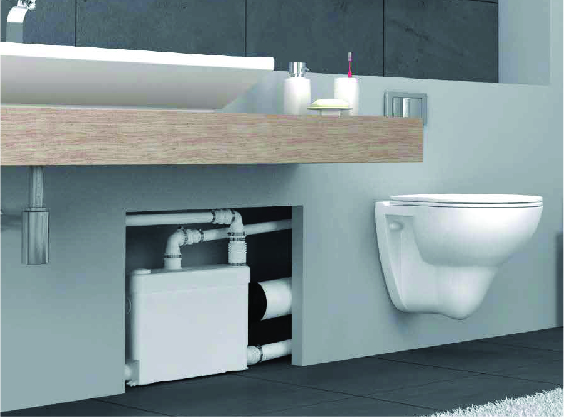

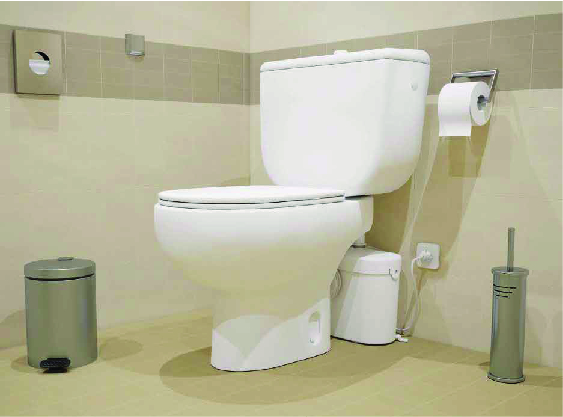

Saniflo Macerating Pump installation in Malaysia
What Is a Macerating Pump?
A macerating pump collects wastewater and reduces solid waste into smaller particles before pumping it through a discharge pipe towards the main drainage system.
This makes it possible to install sanitary facilities in areas where conventional gravity drainage may be difficult or where extensive alteration of the existing floor and drainage system is undesirable.
Heap Wah offers a full range of Saniflo Macerating and Grinder Pump System by Saniflo that would greatly reduces the size of your Waste products before excrete it through the discharge line of your house. Because of the this, the usage of larger diameter Pipe System are no longer deemed necessary thus reduces the overall cost for Materials, Labor and Renovation. In fact, the Pump systems only uses the 32mm Diameter Pipe system to operate.
Plus, using the Above-Floor Plumbing Technology means that the plumber are no longer needs to smash up your home’s floor and wall to get to the main pipelines, there’s is no need to dig the ground up which means no Disruptive nor Destructive Remodelling. Floors, wall and structural integrity would all remains intact while the project time is greatly reduced and construction mess is virtually eliminated.
How Does a Saniflo Macerating Pump Work?
The operating process is simple:

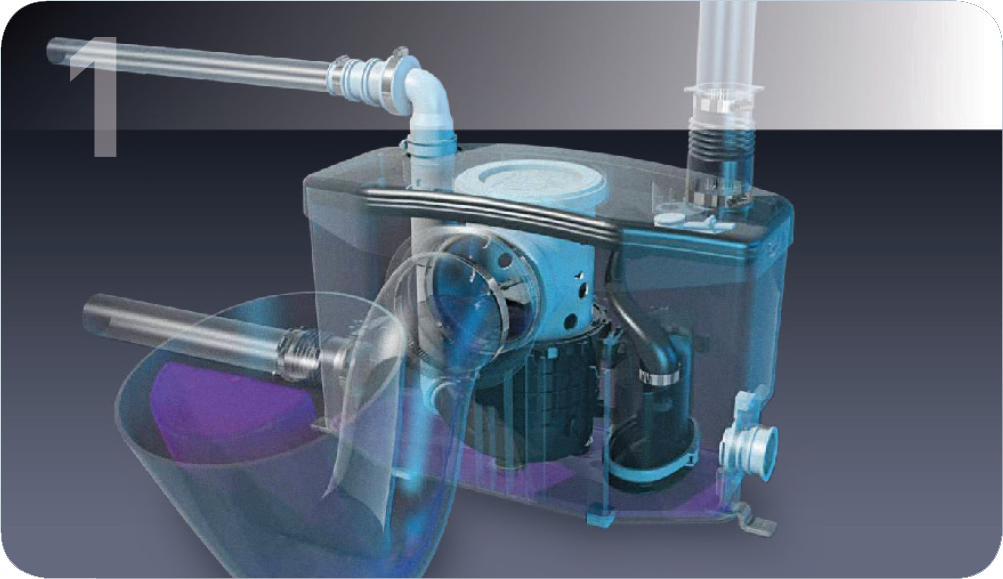

STEP 1
Wastewater enters the Saniflo unit when the connected toilet or sanitary fixture is used.

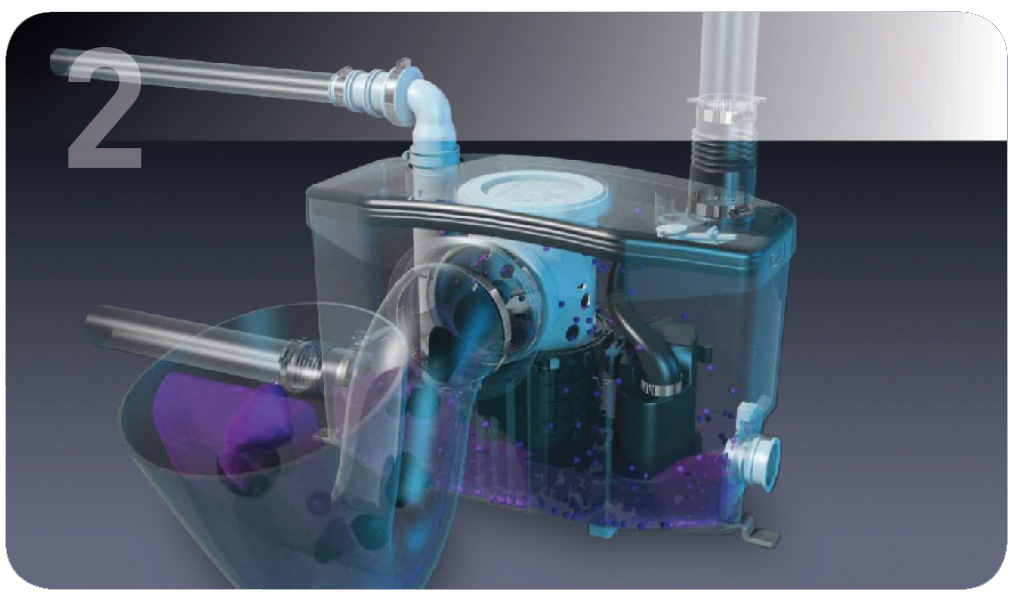

STEP 2
The pump activates automatically when the required water level is reached.

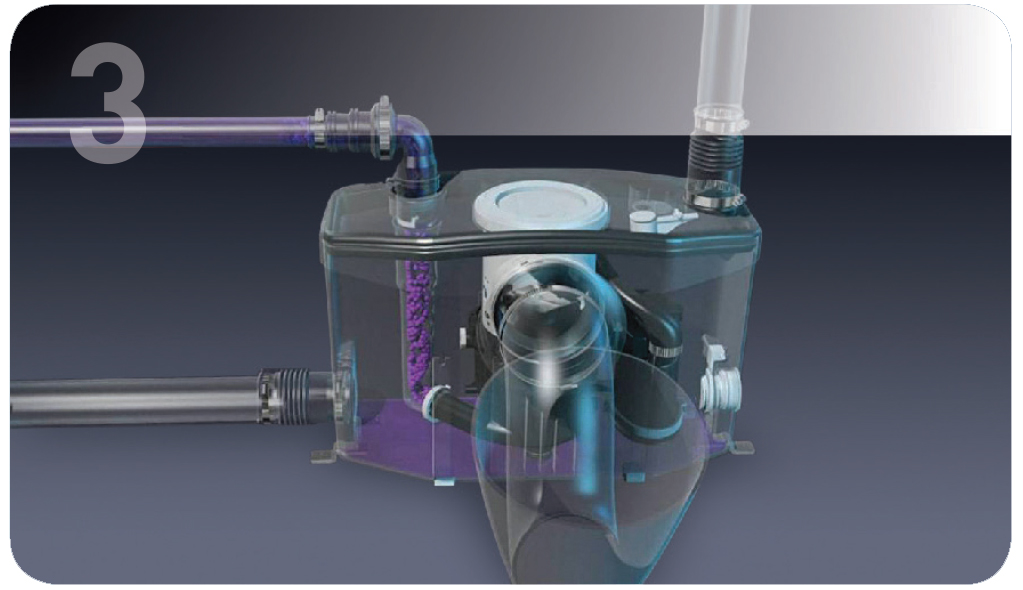

STEP 3
Depending on the model, the macerating or grinding mechanism processes the waste before discharge.

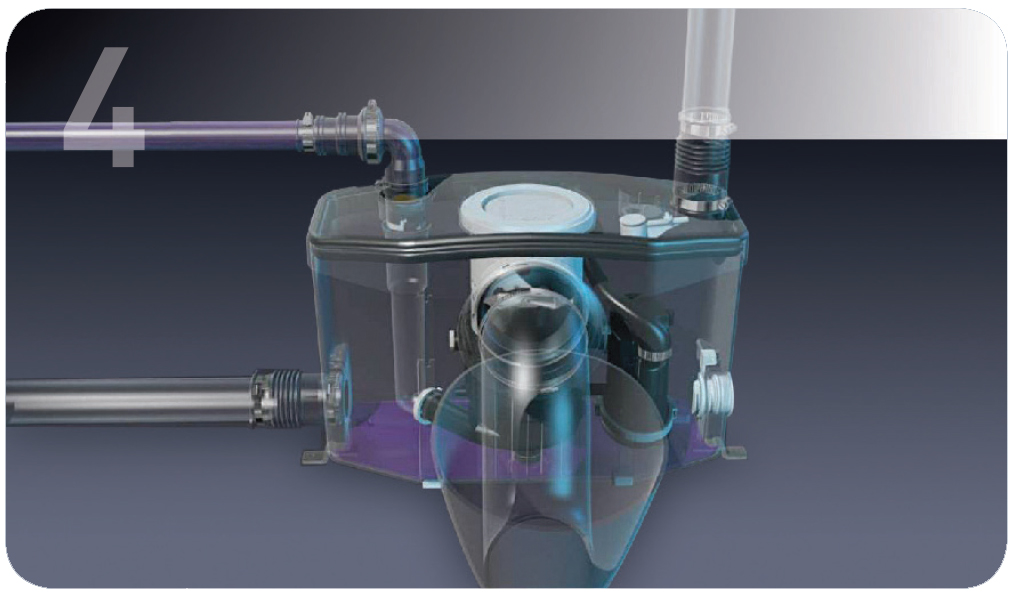

STEP 4
Wastewater is pumped through the discharge pipe towards the existing drainage system.
Why Use a Saniflo Pump System?
Flexible Bathroom Installation
Â
Saniflo systems provide additional flexibility when creating toilets and bathrooms in locations that are difficult to connect using conventional gravity drainage.
Suitable for Renovation Projects
Â
Above-floor wastewater pumping can help reduce the amount of major floor alteration required for selected renovation projects.
Residential & Commercial Applications
Â
Different Saniflo models are designed for applications ranging from residential bathrooms to commercial wastewater and greywater pumping.
Compact Installation
Â
Many Saniflo macerating pumps are designed to fit discreetly behind or close to sanitary fixtures, making them suitable for locations where space is limited.
Saniflo Macerating & Grinder Pump Range

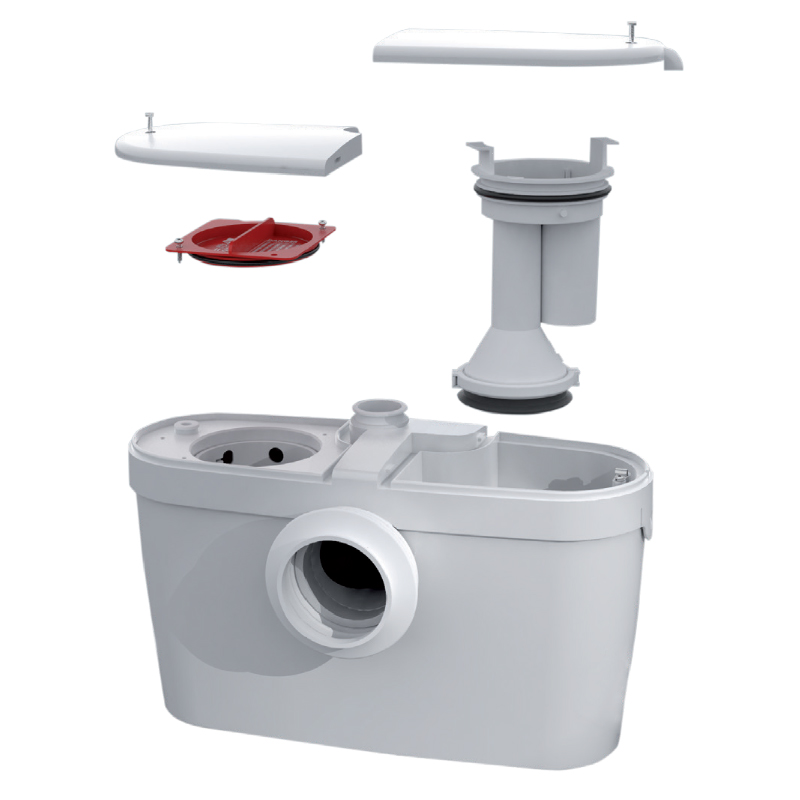

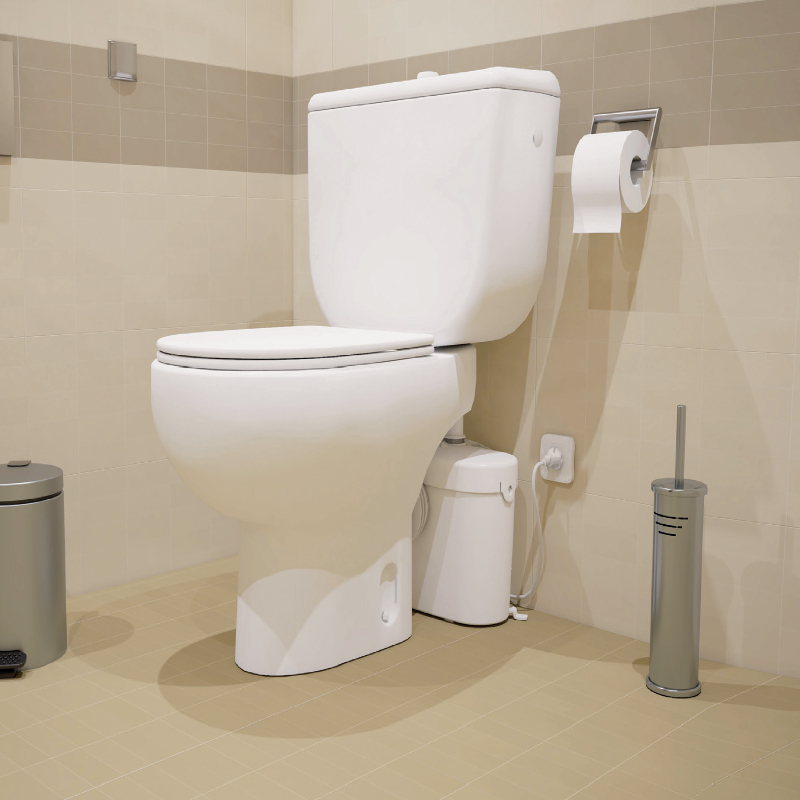

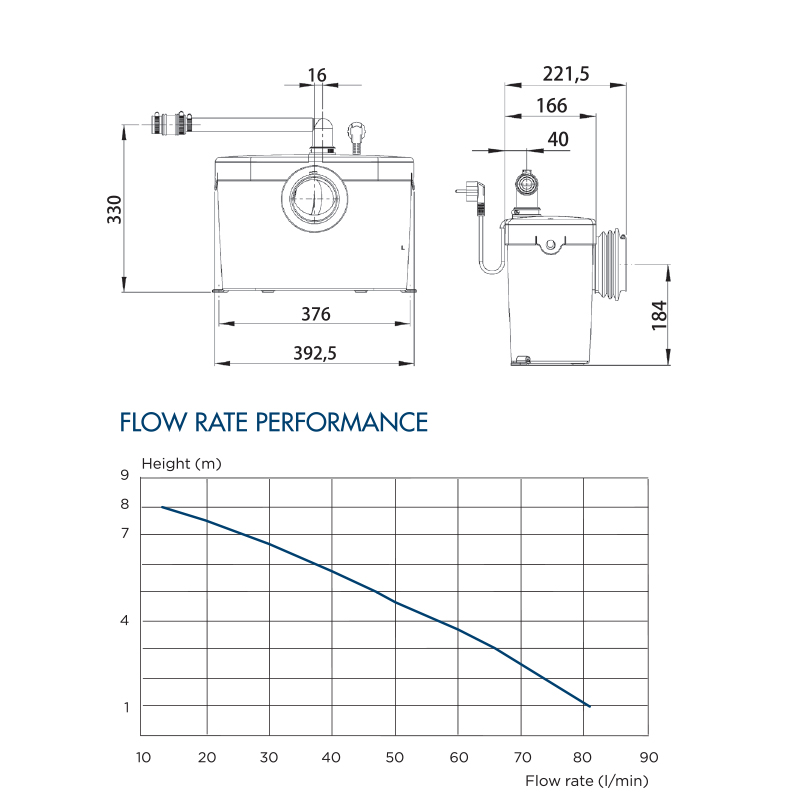

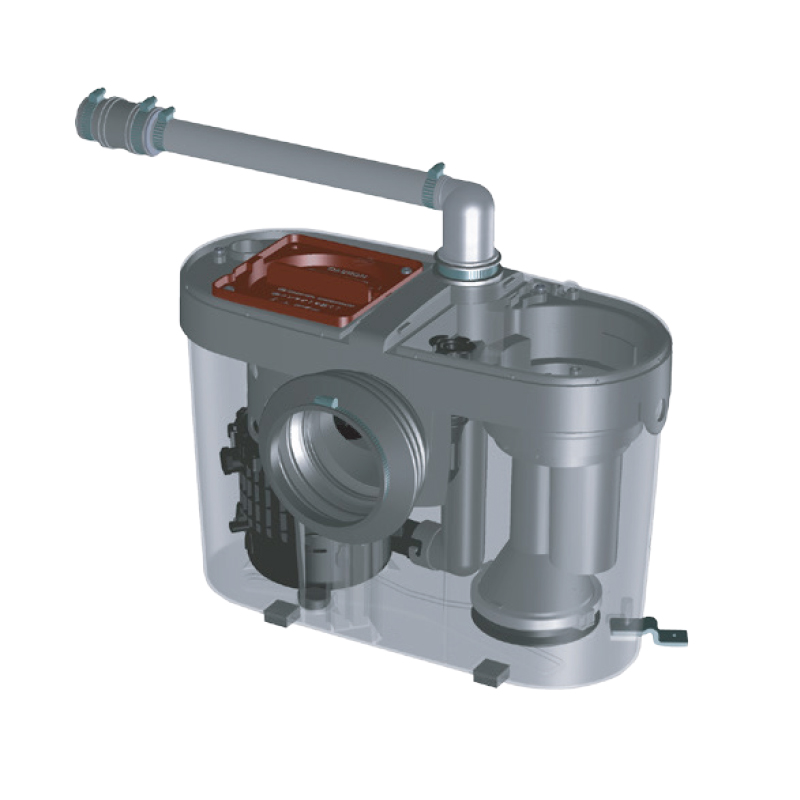

Thanks to it’s clean & minimalistic design, Saniflo SANIACCESS® 1 Grinder Water Pump System fits easily into all types of spaces in your Home
Recommended Waste Pipe Diameter : 22 – 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 400W
Product’s Weight : 5.8 kg
Â
Application for Saniflo Macerating & Grinder Pump:
- Uses Non-Return Valve System
- Low Noise
- Water Closet Compatible

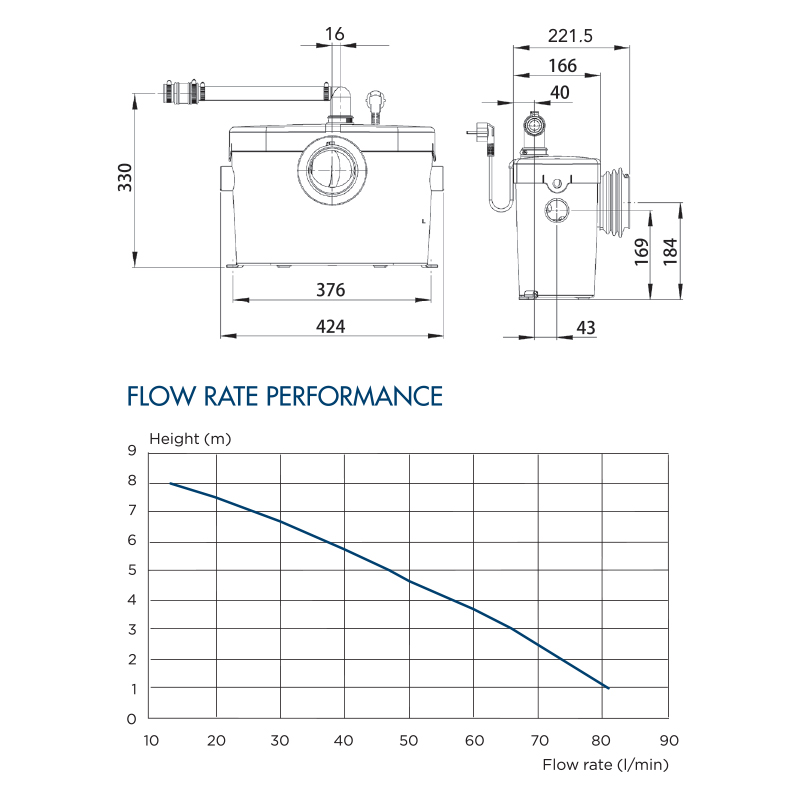

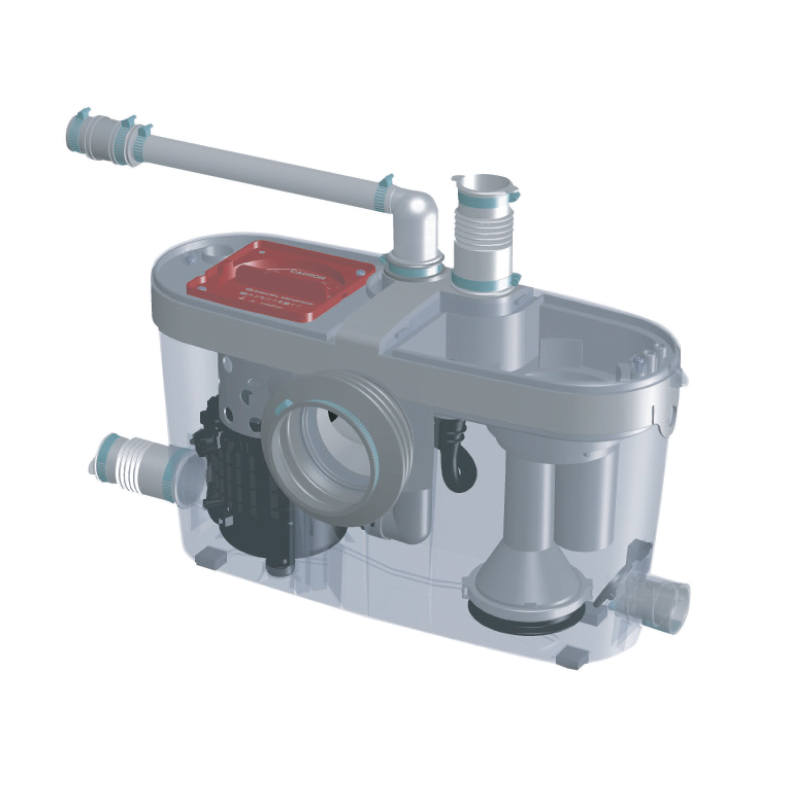

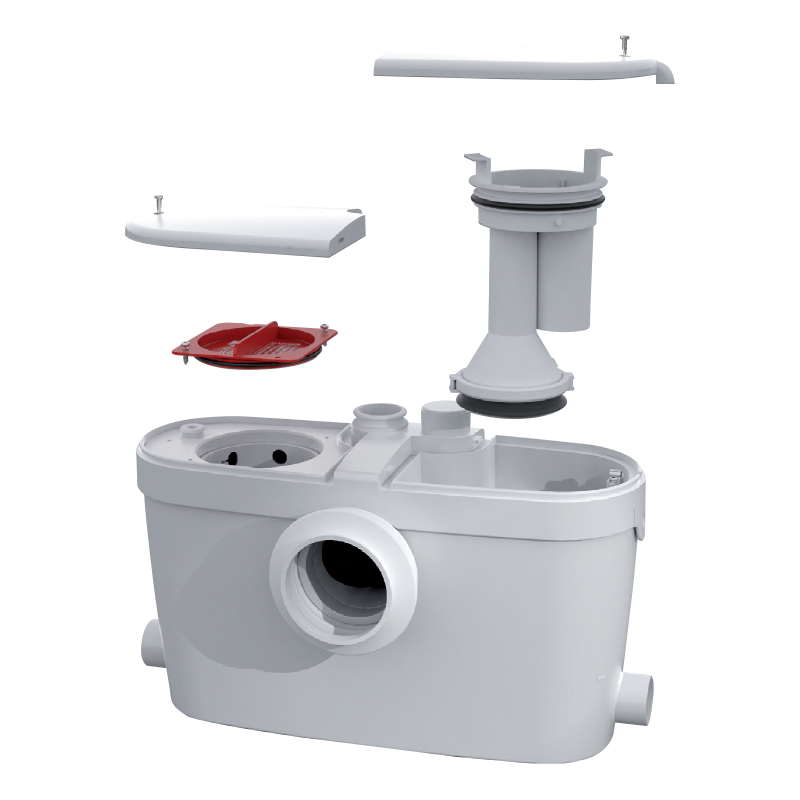

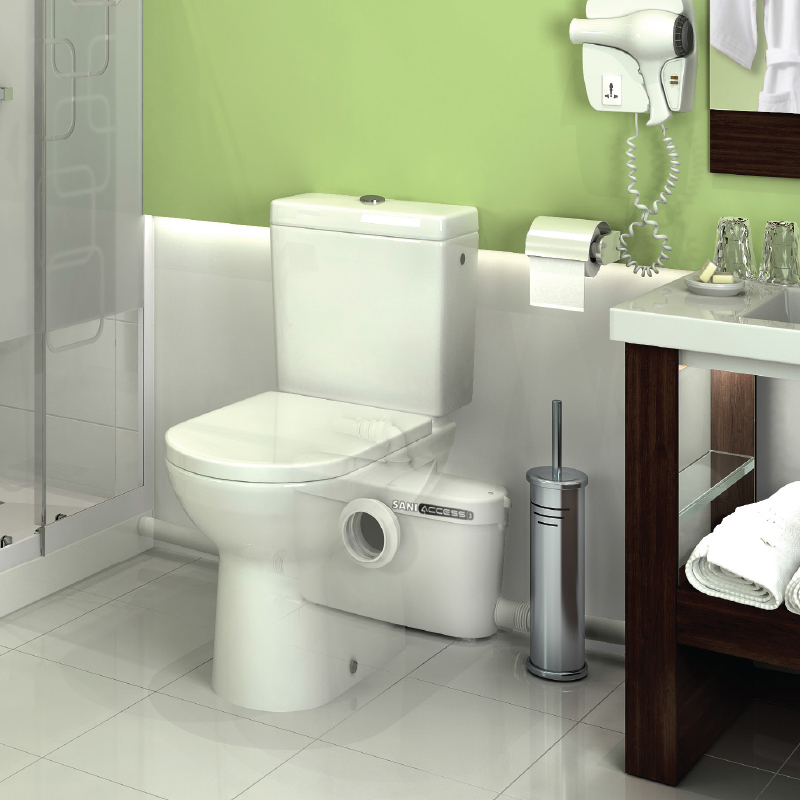

Quiet and Smart, Saniflo SANIACCESS® 3 Grinder Water Pump System makes it possible to install a complete bathroom anywhere in your house
Recommended Waste Pipe Diameter : 22 – 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 400W
Product’s Weight : 6.4 kg
Â
Application for Saniflo Macerating & Grinder Pump:
- Uses Non-Return Valve System
- Low Noise
- Water Closet Compatible
- Wash Basin / Sink Compatible
- Shower Compatible
- Urinal Compatible
- Bathtub Compatible
- Washing Machine Compatible

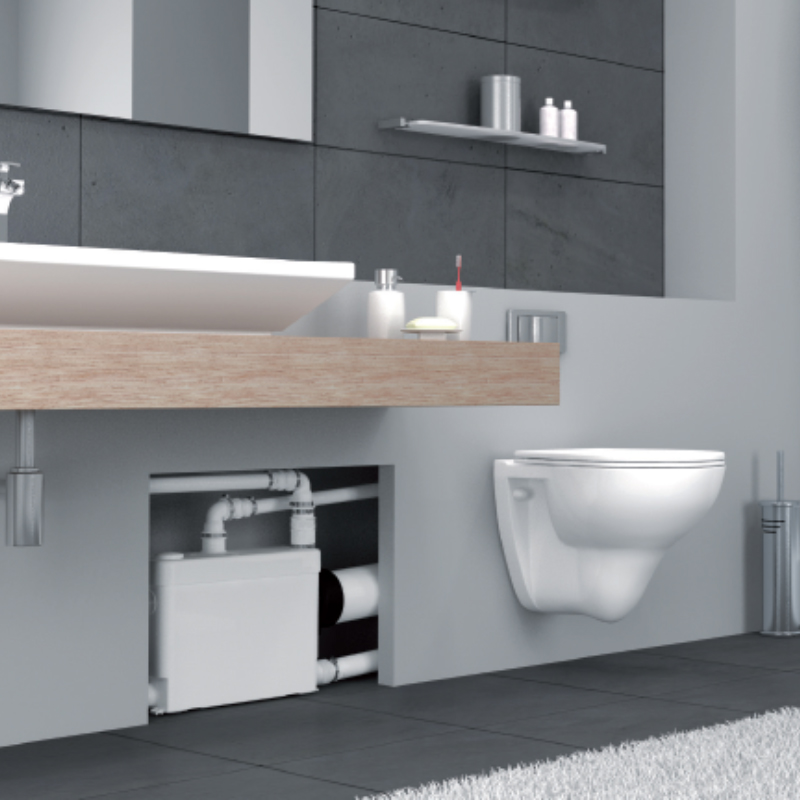

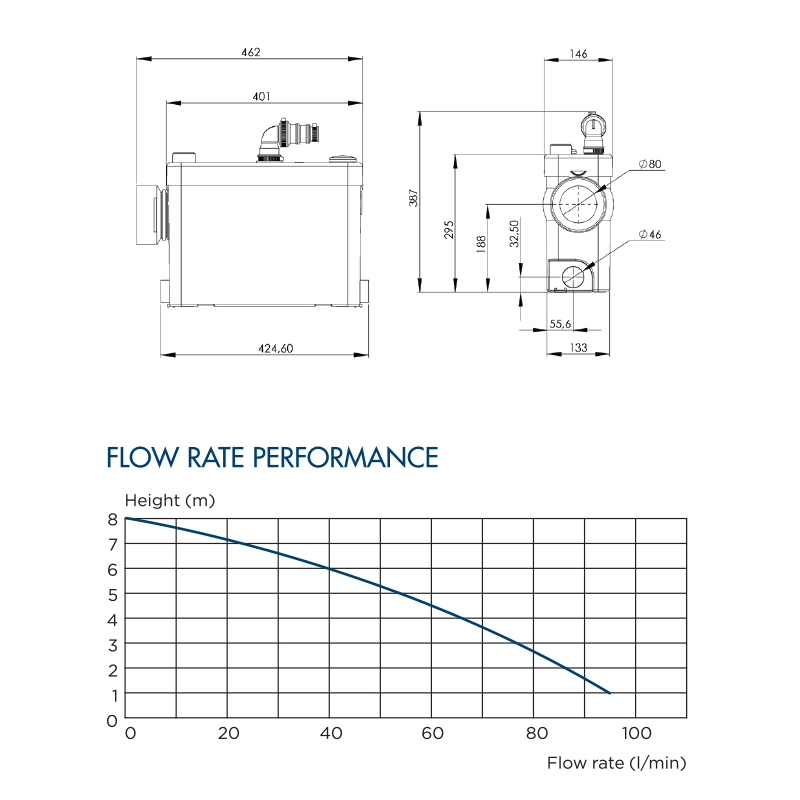

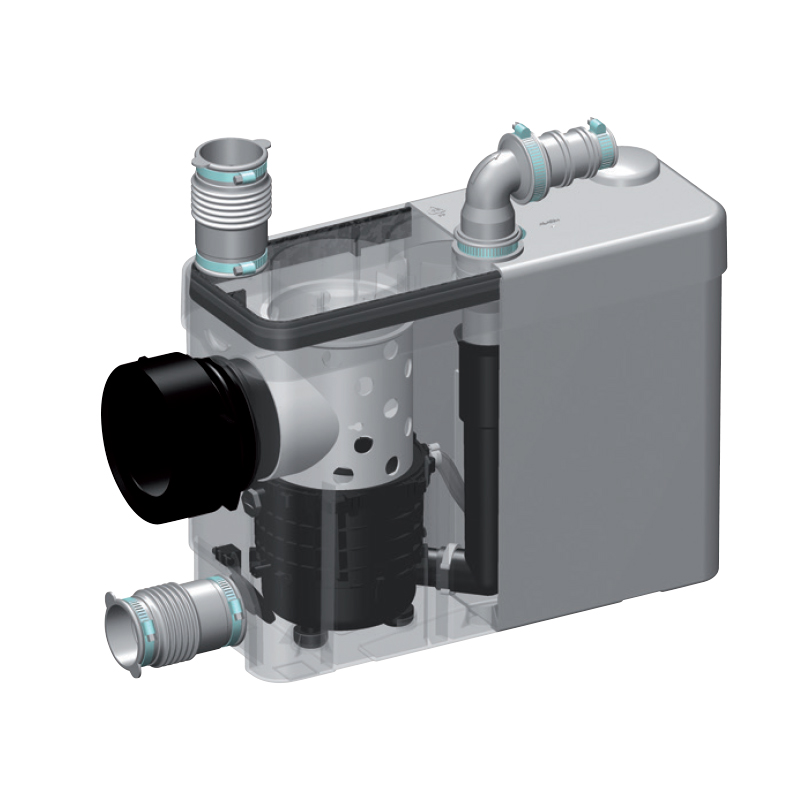

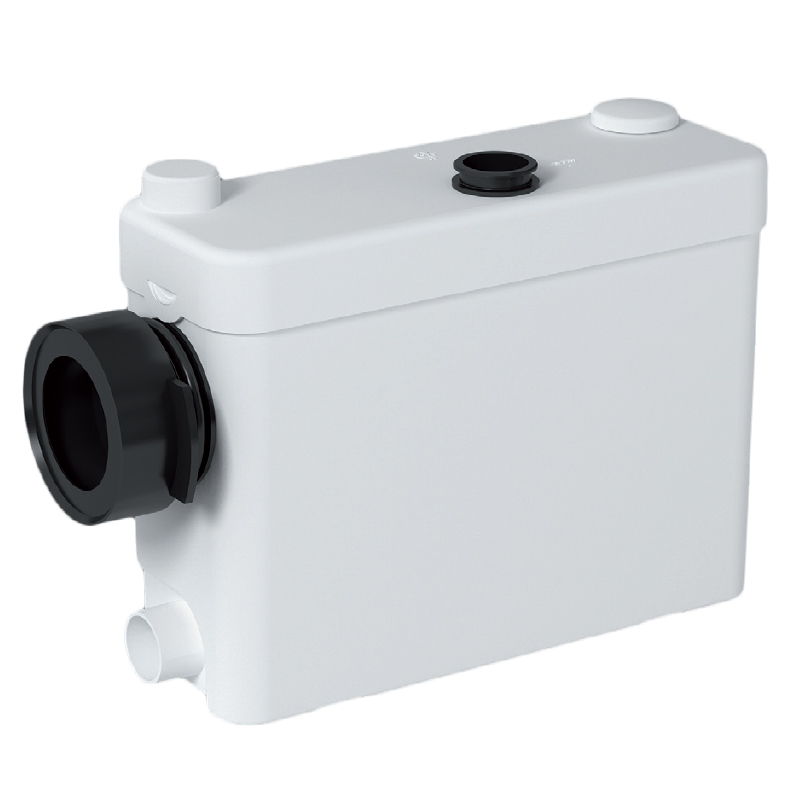

Slim and Minimalist, Saniflo SANIPACK® Grinder Water Pump System comes in remarkably slim 146mm depth designed to be located in a wall cavity in order to install facilities in a very discreet way.
Recommended Waste Pipe Diameter : 22 – 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 400W
Product’s Weight : 7 kg
Â
Application for Saniflo Macerating & Grinder Pump:
- Uses Non-Return Valve System
- Can be equipped with SANIALARM®
- Low Noise
- Wall Hung WC Only
- Wash Basin / Sink Compatible
- Shower Compatible
- Urinal Compatible
- Bathtub Compatible
- Washing Machine Compatible

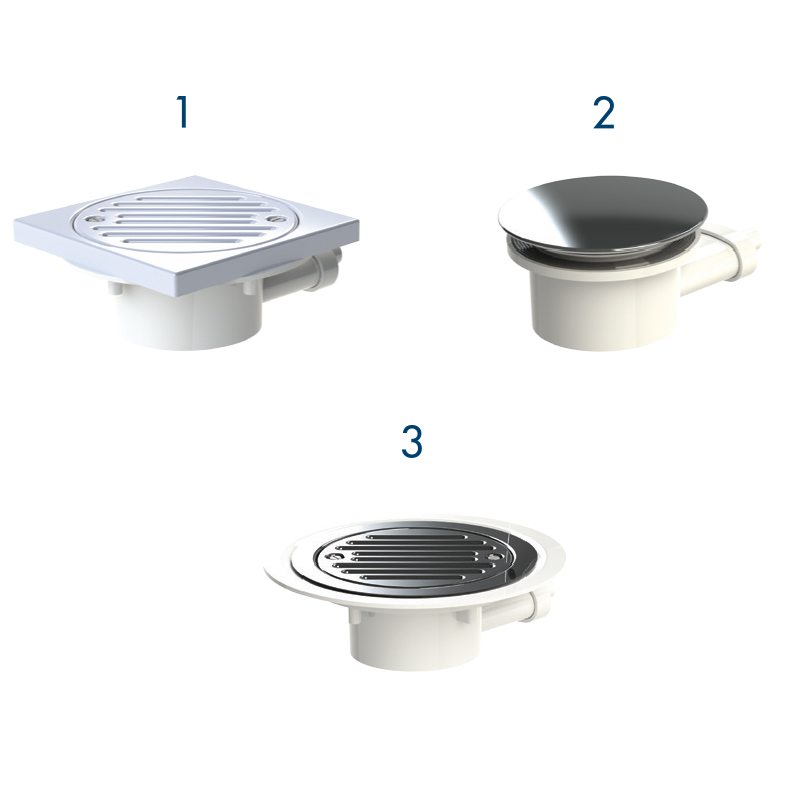

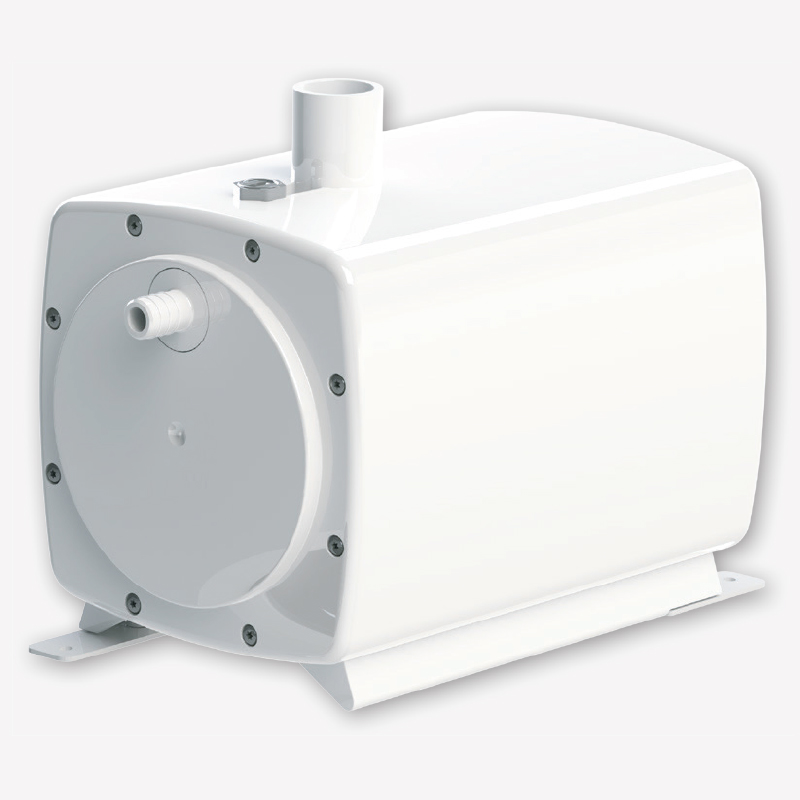

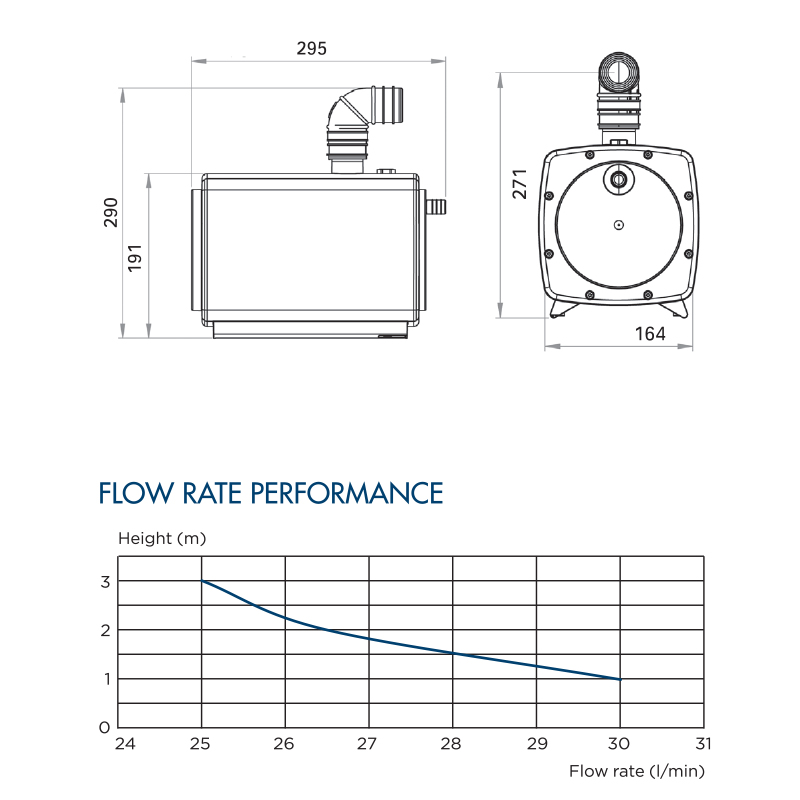

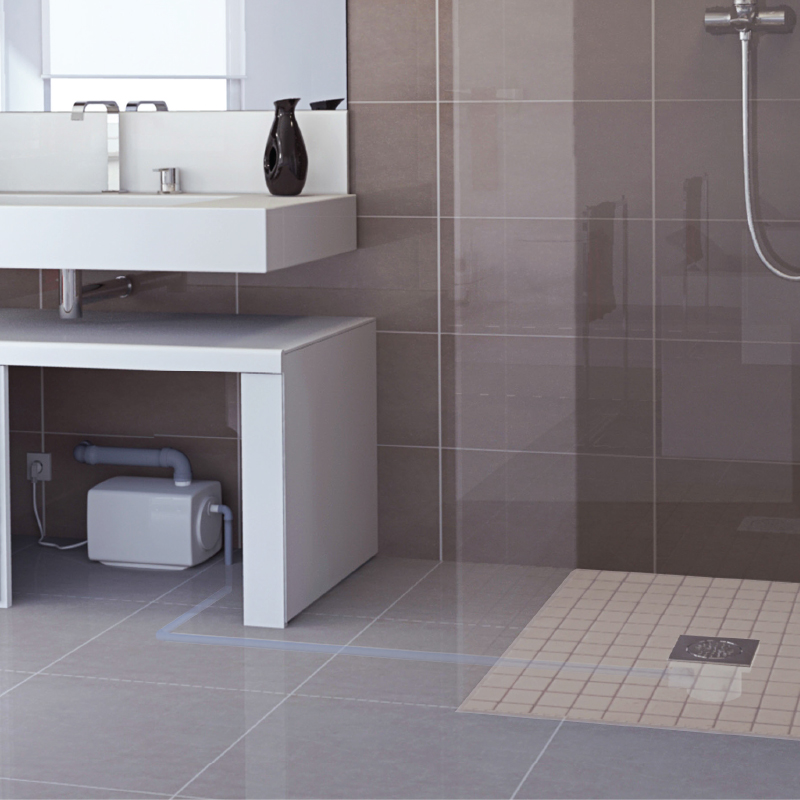

Install a wet floor room where gravity drainage is impossible, Saniflo SANIFLOOR® Grinder Water Pump System includes a wet floor siphon with Sensor and suction pump
Recommended Waste Pipe Diameter : 22 – 32 mm
Normal Operating Temperature : 35°C
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 400W
Product’s Weight : Â 7.9 kg
Â
Application for Saniflo Macerating & Grinder Pump:
- Uses Non-Return Valve System
- Floor Trap Compatible
- Shower area & Bathtub Compatible

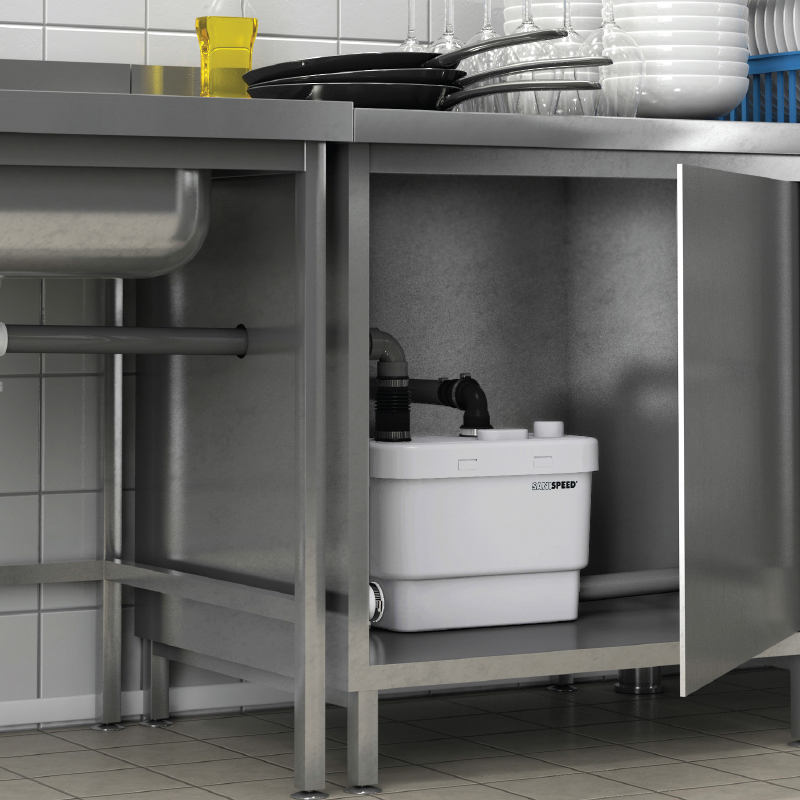

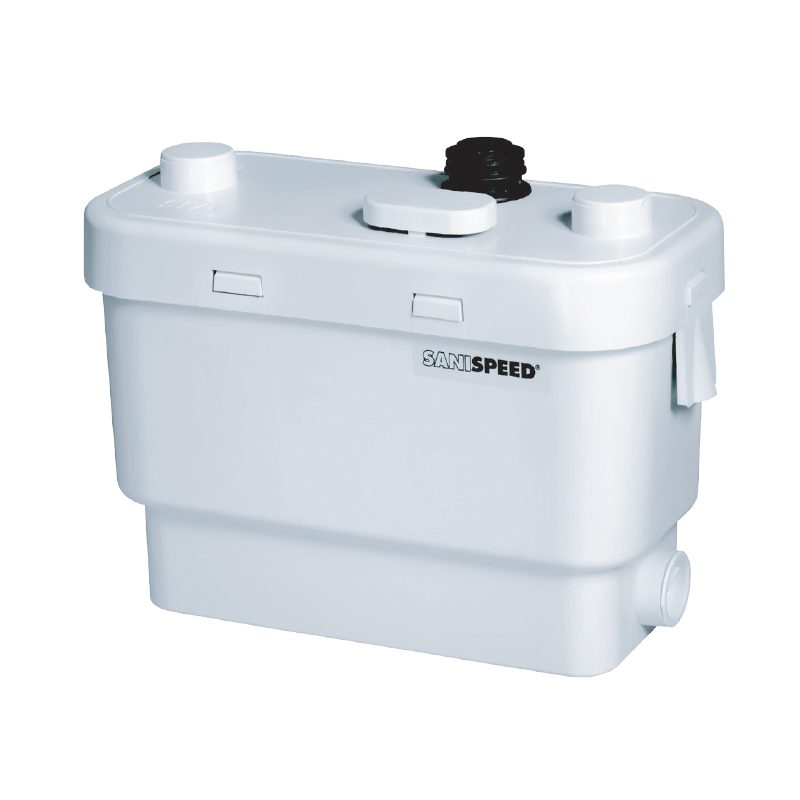

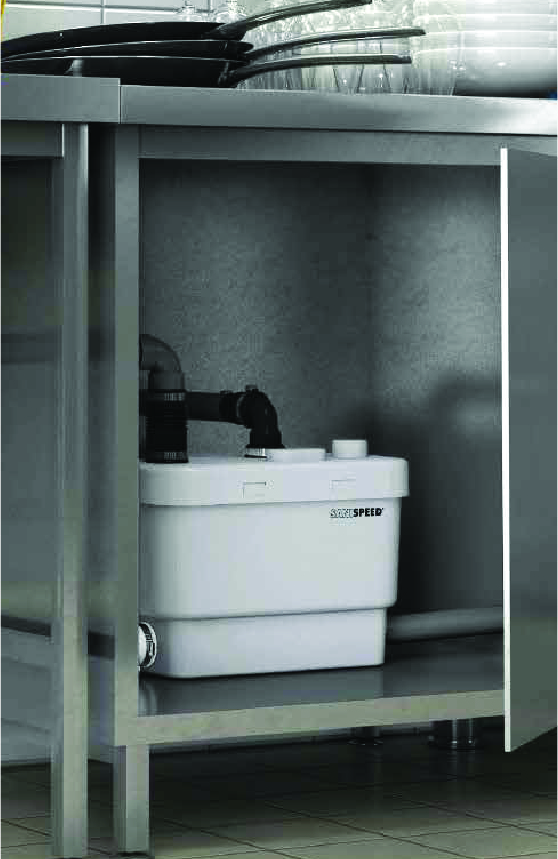

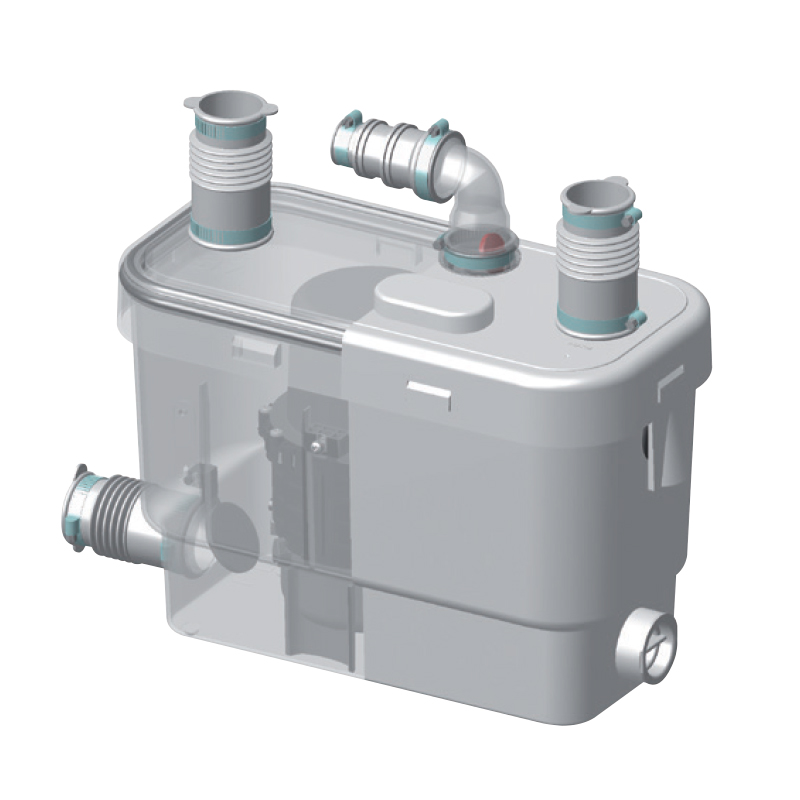

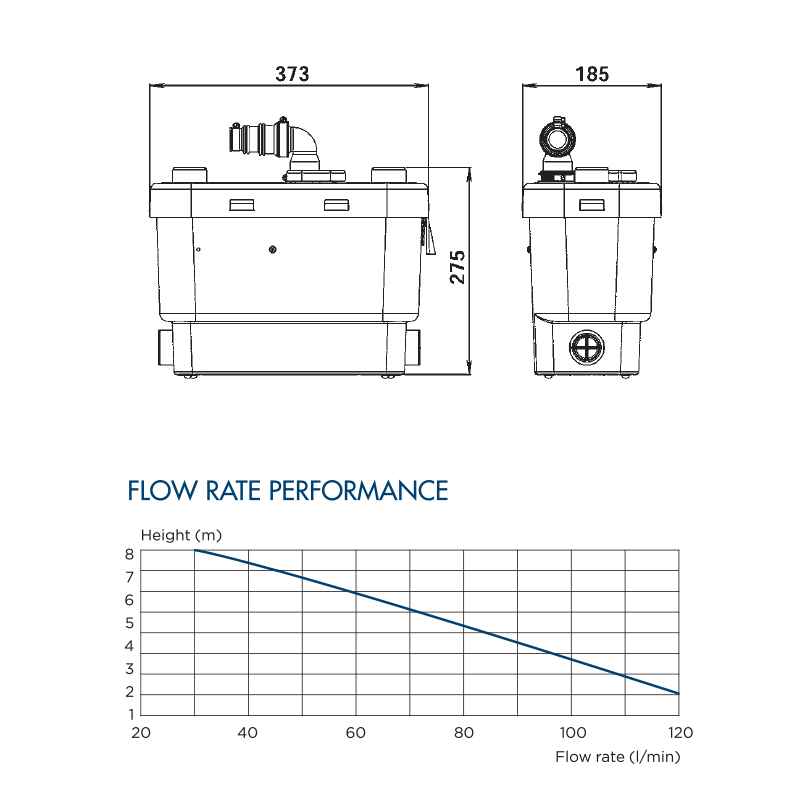

Saniflo SANISPEED® Grinder Water Pump System is a powerful Grey Water Pump which is intended for Light commercial situations.
Recommended Waste Pipe Diameter : 32 mm
Normal Operating Temperature : 35°C
Maximum Incoming Water : 75°CÂ
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 400W
Product’s Weight : 6.4 kg
Â
Application for Saniflo Macerating & Grinder Pump:
- Uses Non-Return Valve System
- Can be equipped with SANIALARM®
- Low Noise
- Wash Basin / Sink Compatible
- Shower Compatible
- Urinal Compatible
- Bathtub Compatible
- Washing Machine Compatible

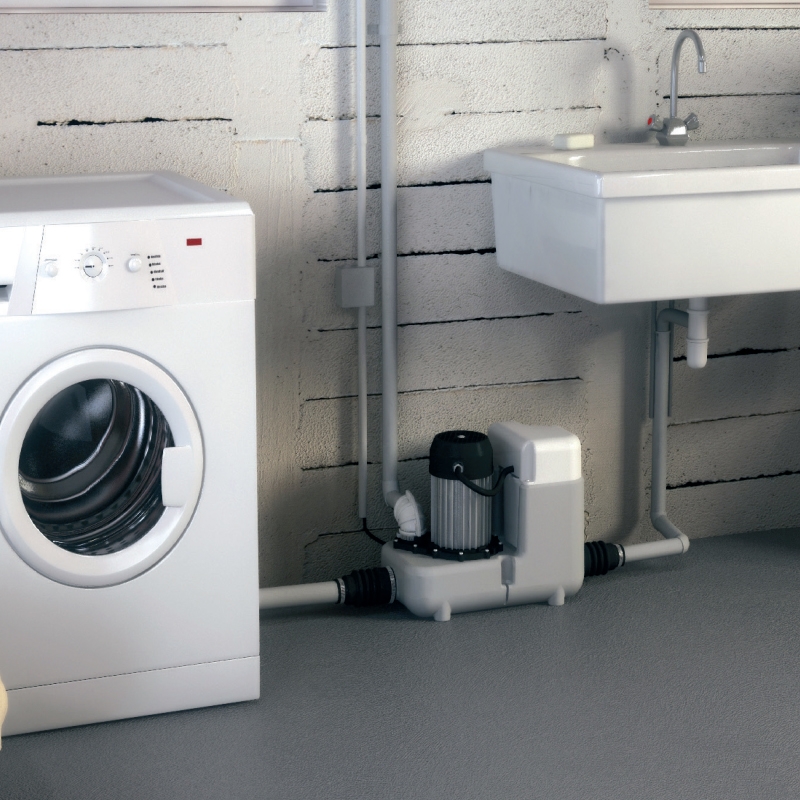

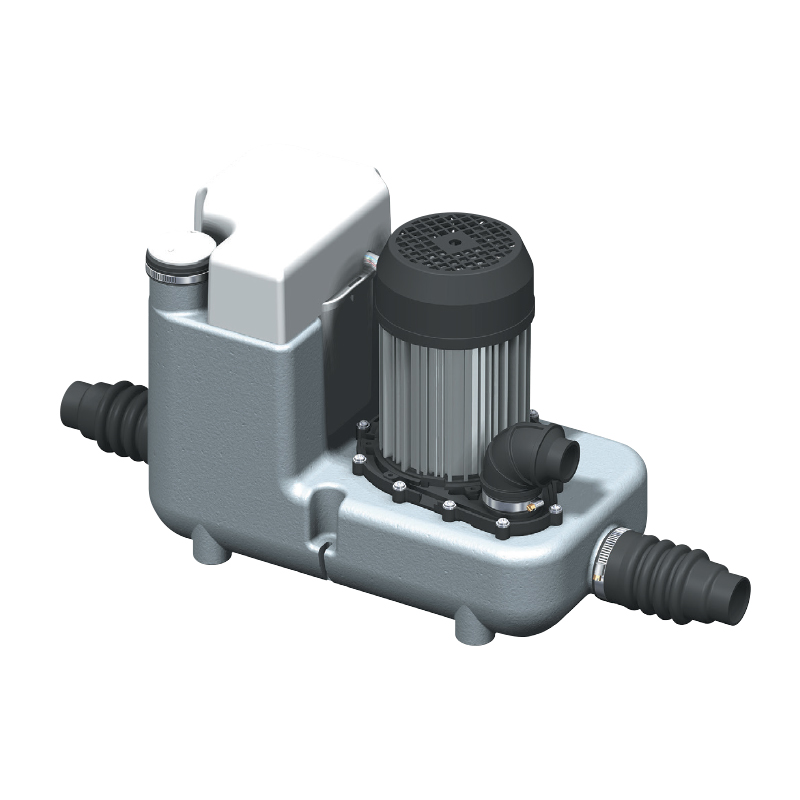

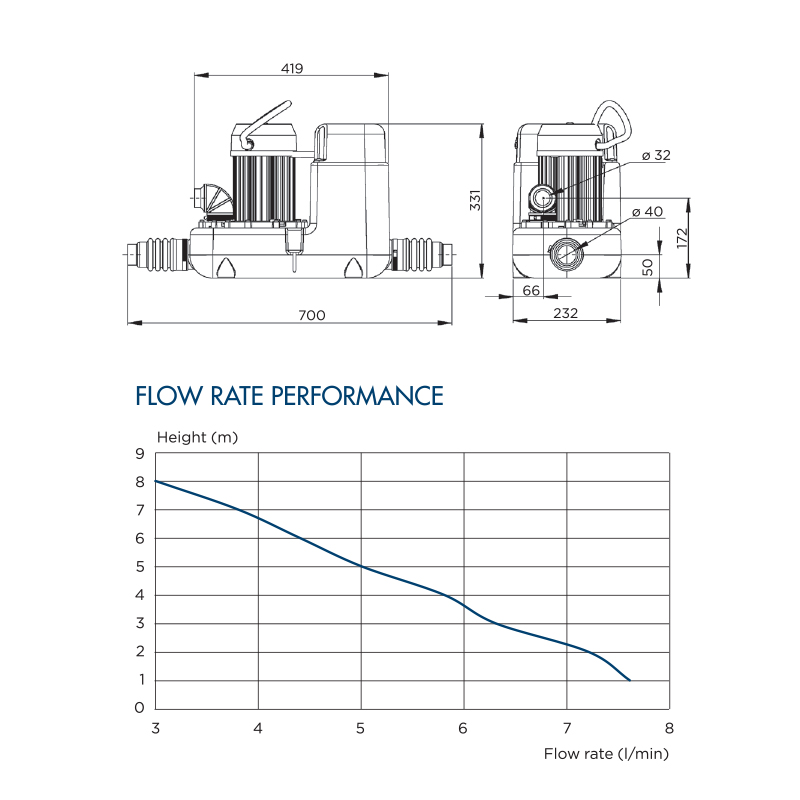

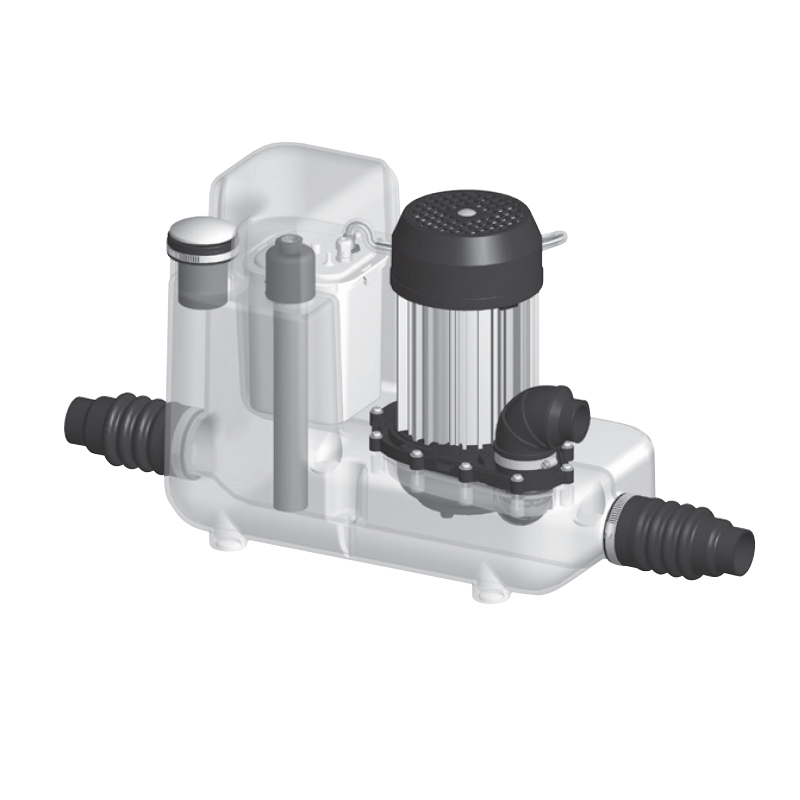

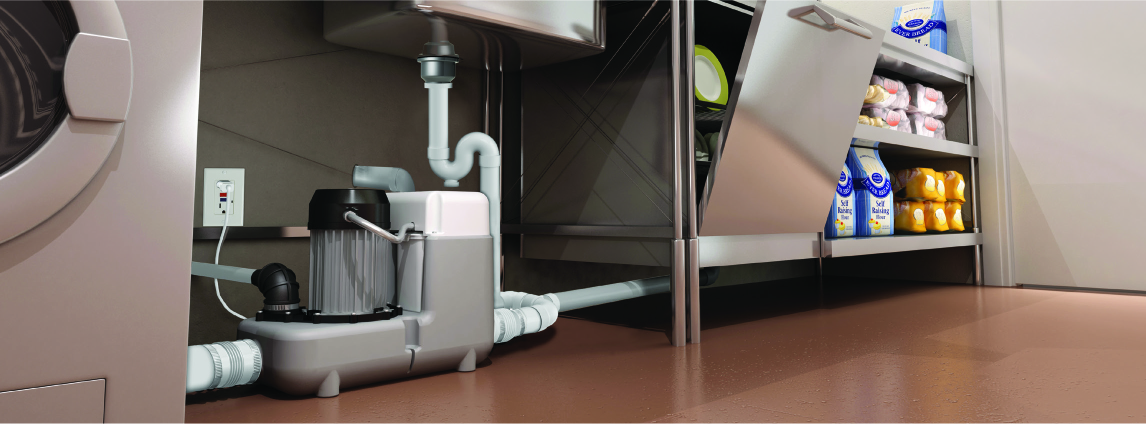

Resisting to High Temperature, Saniflo SANICOM®1 Grinder Water Pump System can be used as a lift station for any kind of waste waters (except Toilet Wastes) in domestic and commercial places (Bar, Restaurant, Laundry etc.)
Recommended Waste Pipe Diameter : 50 mm
Normal Operating Temperature : 35°C (Maximum acceptable of 90°C for 5 min Max)
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 750W
Product’s Weight : 10 kg
Tank Volume : 10 Litres
Â
Application for Saniflo Macerating & Grinder Pump:
- Wash Basin / Sink Compatible
- Dishwasher Compatible
- Shower Compatible
- Urinal Compatible
- Bathtub Compatible
- Washing Machine Compatible

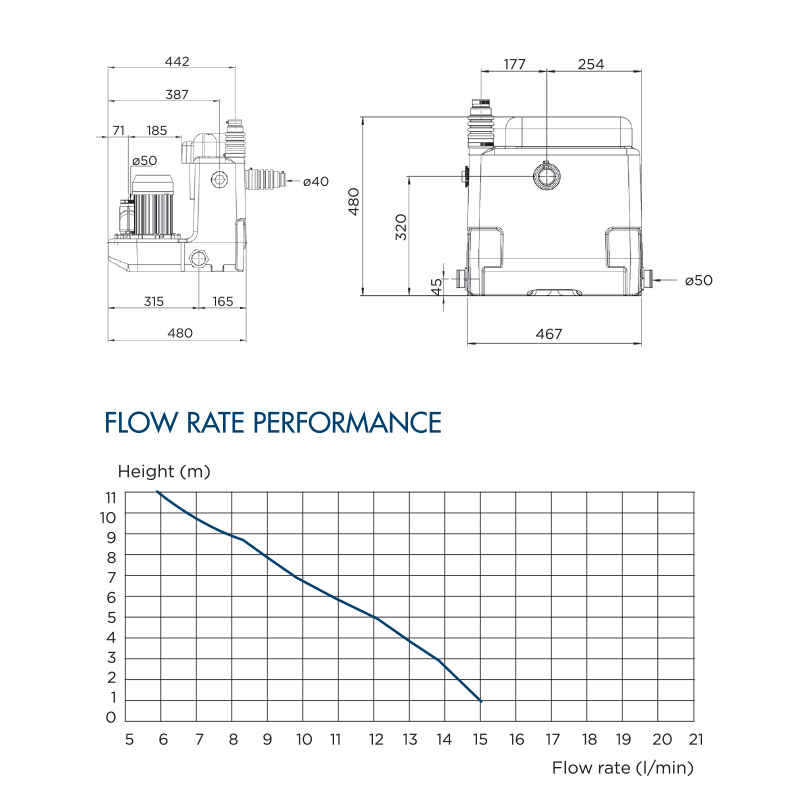

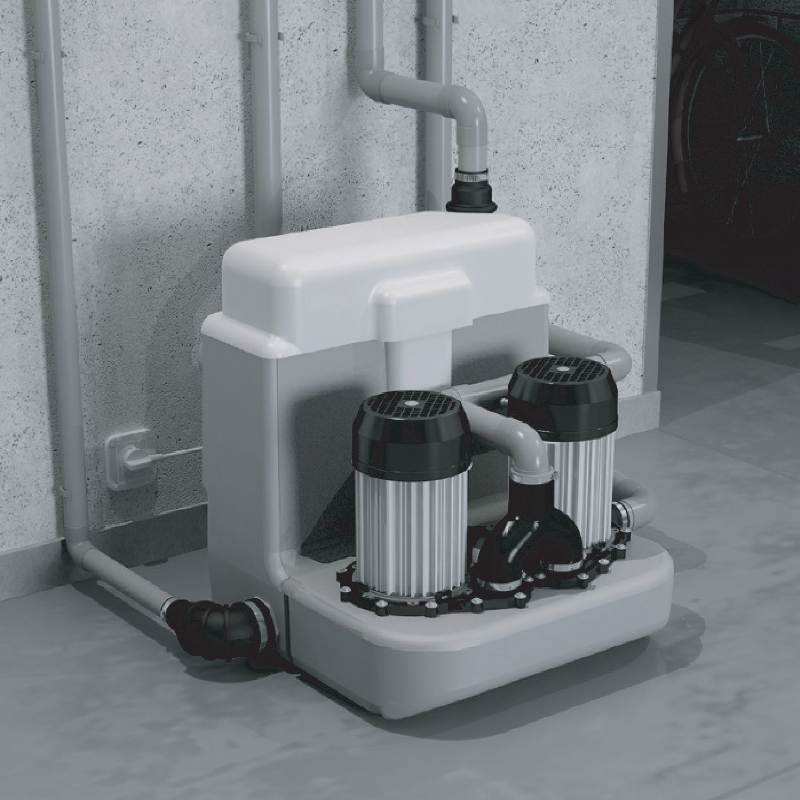

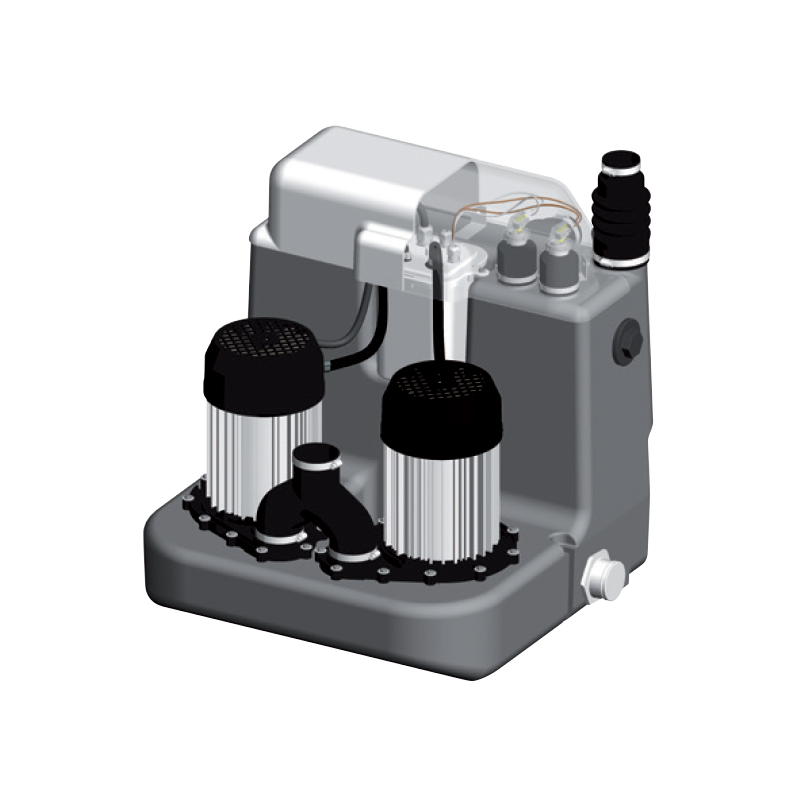

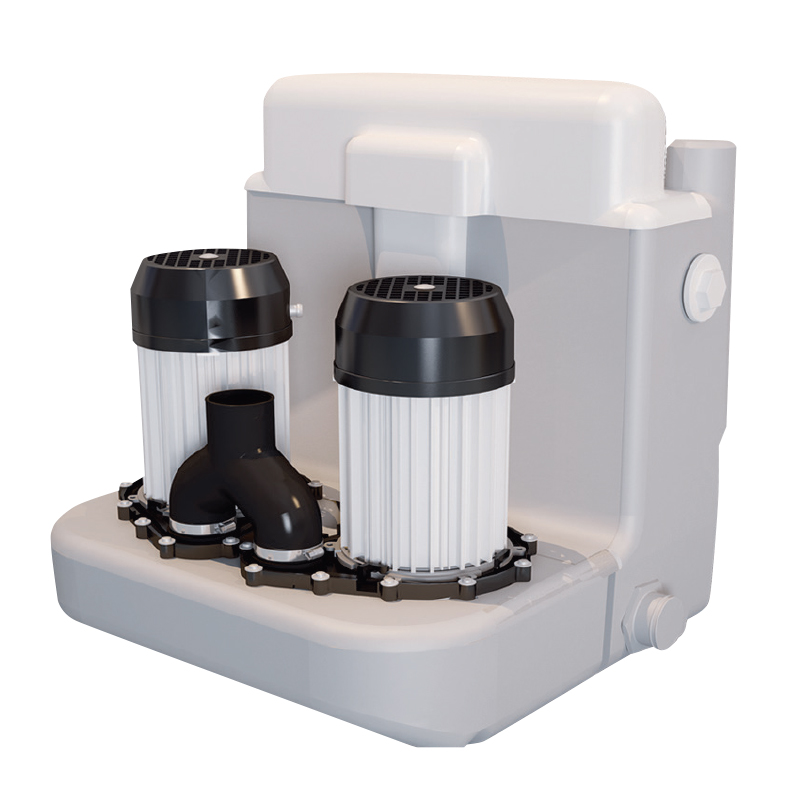

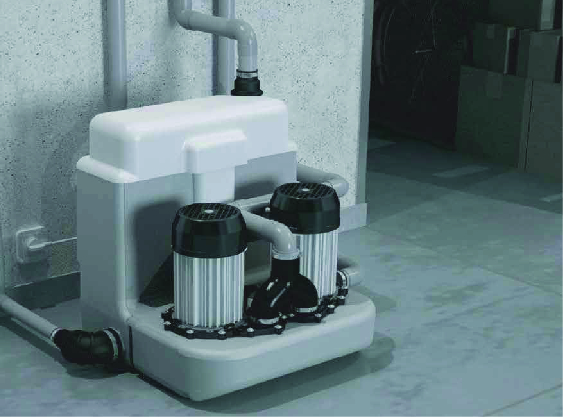

Saniflo SANICOM®2 Grinder Water Pump System is a dual-motor Gray Water Pump that can be used to pump away waste water from bathrooms (Except Toilets), Kitchen & Utility Rooms. This Water Pump has been specially designed for domestic or commercial use.
Recommended Waste Pipe Diameter : 50 mm
Normal Operating Temperature : 35°C (Maximum acceptable of 90°C for 5 min Max)
Index of Protection : IP44
Electrical Power Supply : 220 – 240 V / 50Hz
Motor Power Rating : 2 x 1300W
Product’s Weight : 26 kg
Tank Volume : 34.5 Litres
Â
Application for Saniflo Macerating & Grinder Pump:
- Wash Basin / Sink Compatible
- Dishwasher Compatible
- Shower Compatible
- Urinal Compatible
- Bathtub Compatible
- Washing Machine Compatible
