RM6,600.00 – RM32,018.00
AVK Butterfly Valves are approved by SPAN Malaysia
Standards :

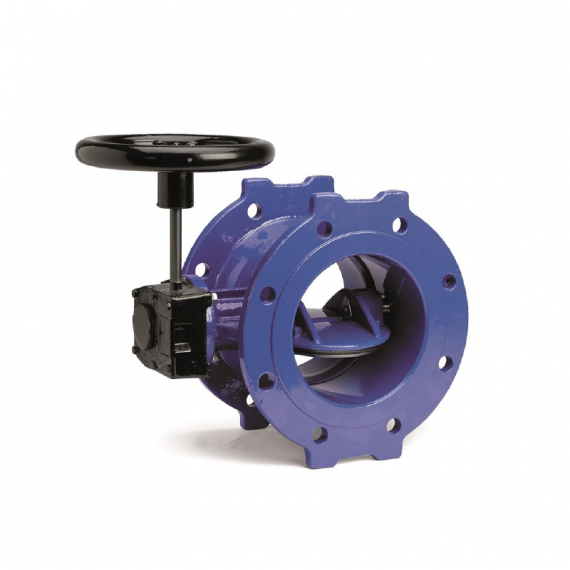

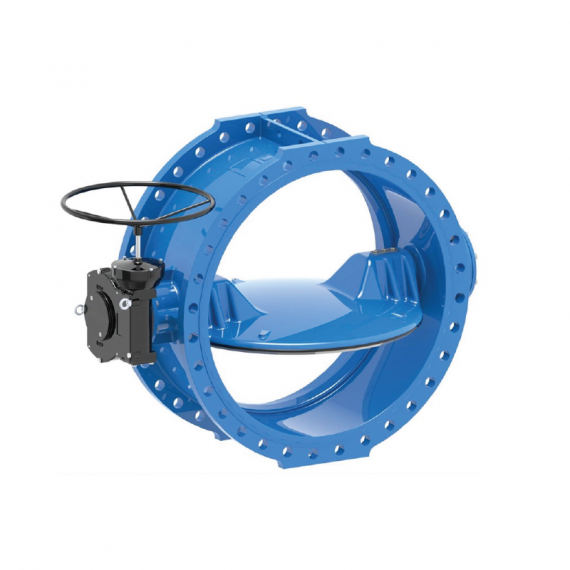

AVK Double Eccentric Butterfly Valve – the ultimate solution for your fluid control needs. Manufactured by AVK Malaysia, a reputable brand in the industry, this valve is designed with an advanced tilted and fixated disc mechanism for extended service life and easy operation.
The double eccentric design of the AVK butterfly valve ensures a smooth, low-torque operation even in high-pressure environments. The disc is fixated to prevent wear and fluttering, while the tilted disc releases the compression of the disc sealing after a few degrees of opening. This AVK butterfly valve feature not only extends the durability of the valve but also provides low operating torques.
AVK butterfly valve disc seal profile and rubber quality ensure low closing torques, making the valve easy to operate. All rubber parts of the AVK butterfly valve are multi-approved and made of drinking water approved EPDM rubber. This rubber features an excellent compression set, which allows it to regain its original shape and maintain its sealing ability for extended periods.
The seal retainer ring of stainless steel and threaded bolt holes in the disc are corrosion-protected with O-rings, which increases the valve’s lifespan. Moreover, the machined and epoxy-coated ductile iron seat integrated into the body ensures a secure fit and minimizes the risk of leakage.
The shaft of the AVK butterfly valve is made of high-quality stainless steel and features self-lubricating bearings. The shaft ends are fully encapsulated in the disc and are fixed with dowels corrosion-protected with O-rings and a stainless steel security plate. The valve also features a key and keyway as backup for added security.
The AVK butterfly valve comes with a replaceable shaft sealing with two EPDM O-rings on each side of a bronze bushing, and a flat NBR gasket. This ensures easy maintenance and makes it simple to replace worn-out parts, prolonging the valve’s lifespan.
The AVK butterfly valve is designed according to EN 593 and face-to-face according to EN 558 Table 2 Basic Series 13. The valve also has standard flange drilling to EN1092-2 (ISO 7005-2) and PN 10/16, making it easy to install in most systems.
The AVK butterfly valve is suitable for bi-directional application and is available with an optional locking device for added security. The body and disc of the valve are made of ductile iron with an epoxy coating to DIN 30677-2, GSK approved, RAL 5017, according to WRAS-DVGW/W270/UBA. This ensures high durability and resistance to corrosion and harsh environments.
AVK Double Eccentric Butterfly Valve is an excellent investment for any fluid control application. Its advanced design and high-quality construction ensure extended service life, easy operation, and low maintenance costs. Trust AVK Malaysia for all your fluid control needs and choose the AVK butterfly valve for guaranteed performance and reliability.
If you are looking for an effective, reliable, and durable butterfly valve for your fluid control needs, the AVK Double Eccentric Butterfly Valve is the perfect choice. With its advanced design, high-quality construction, and excellent features, it is sure to exceed your expectations. Choose AVK Malaysia for all your fluid control needs and enjoy peace of mind knowing that you are getting the best product in the industry. Remember the keywords AVK butterfly VALVE MALAYSIA, AVK MALAYSIA, and butterfly VALVE MALAYSIA to find this product easily online.
SAFETY NOTES :- The valves now accomodate lifting bars for the safe handling of valves. These lifting bars are rated to the weight of the bare valve and stem cap ( where lifted ) only and should not be utilised if the valve is fitted with pipe, mechanical pipe joints, gearboxes, actuators or any other external fitment. AVK Valves will not accept any responsibility for loss or damages if the lifting bars are not used in strict accordance with this guidance.
For more information about AVK Valves Malaysia, please click here for the catalog and certifications.
