Ductile iron fittings form the connection points that allow a water pipeline to change direction, branch into another line, transition between diameters and connect to valves, pumps and other equipment.
Heap Wah Barakah supplies ductile iron fittings for Malaysian water infrastructure, plumbing and engineering projects.
These fittings form part of a complete ductile iron pipes and fittings system used in water distribution, transmission and infrastructure applications.
Our DI fitting range can support new pipeline construction, water network upgrades, plant installations, valve chambers, repair works and other water infrastructure applications.

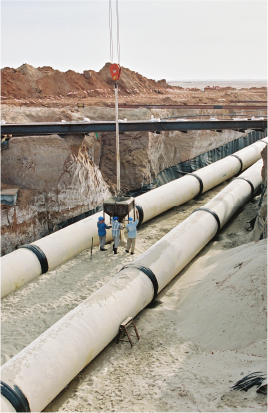

Ductile iron pipe installation in Malaysia
Ductile iron fittings are components manufactured from ductile iron for use together with compatible pipeline systems.
While straight DI pipes transport water over distance, fittings make it possible to create the actual pipeline layout.
A typical project may require:
Pipe → Bend → Tee → Reducer → Valve → Flange Adaptor → Pipe
Selecting the correct fitting therefore requires consideration of more than diameter alone.
Important factors include:

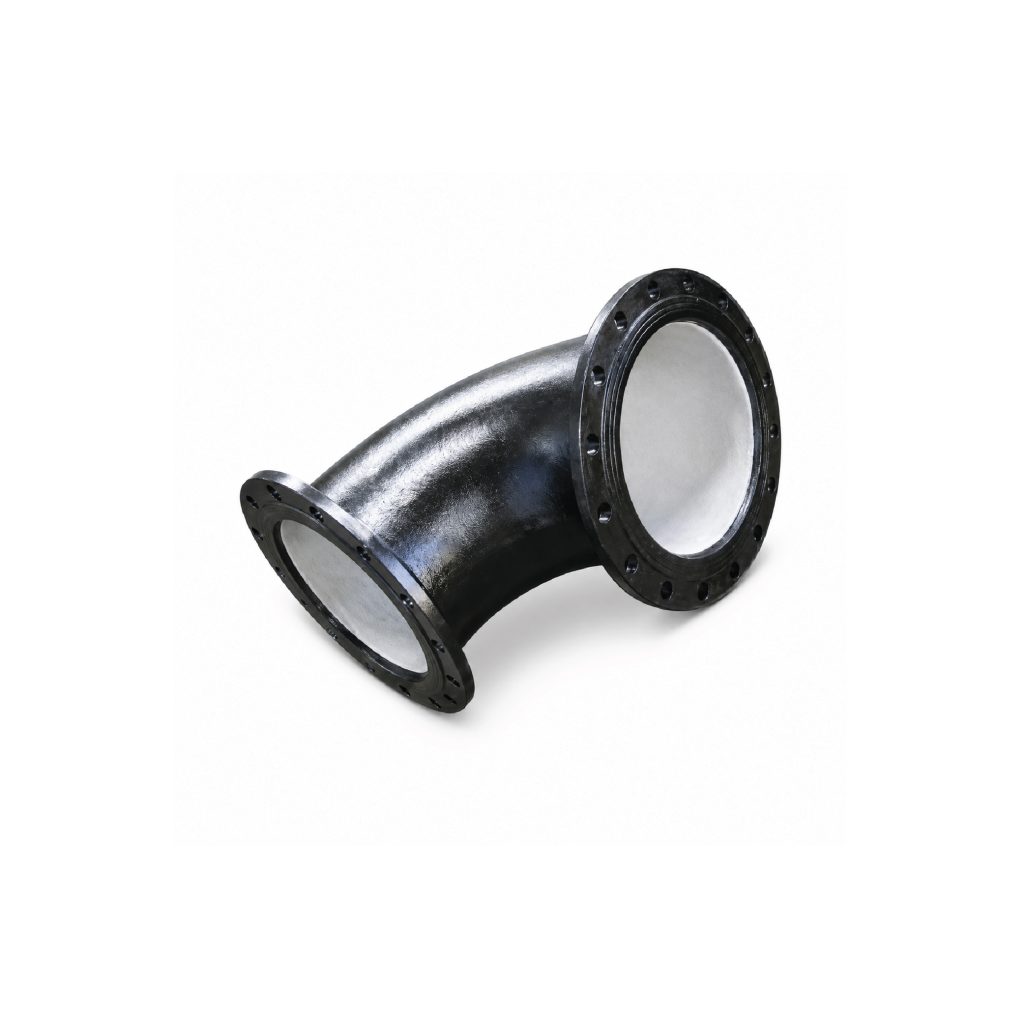

A DI bend changes the direction of a pipeline.
Frequently used angles include:
A smaller directional change can sometimes be achieved using allowable joint deflection, but engineered bends should be used where required by the pipeline design.
DI bends may be supplied with socket or flanged ends depending on the piping system.
Typical applications:

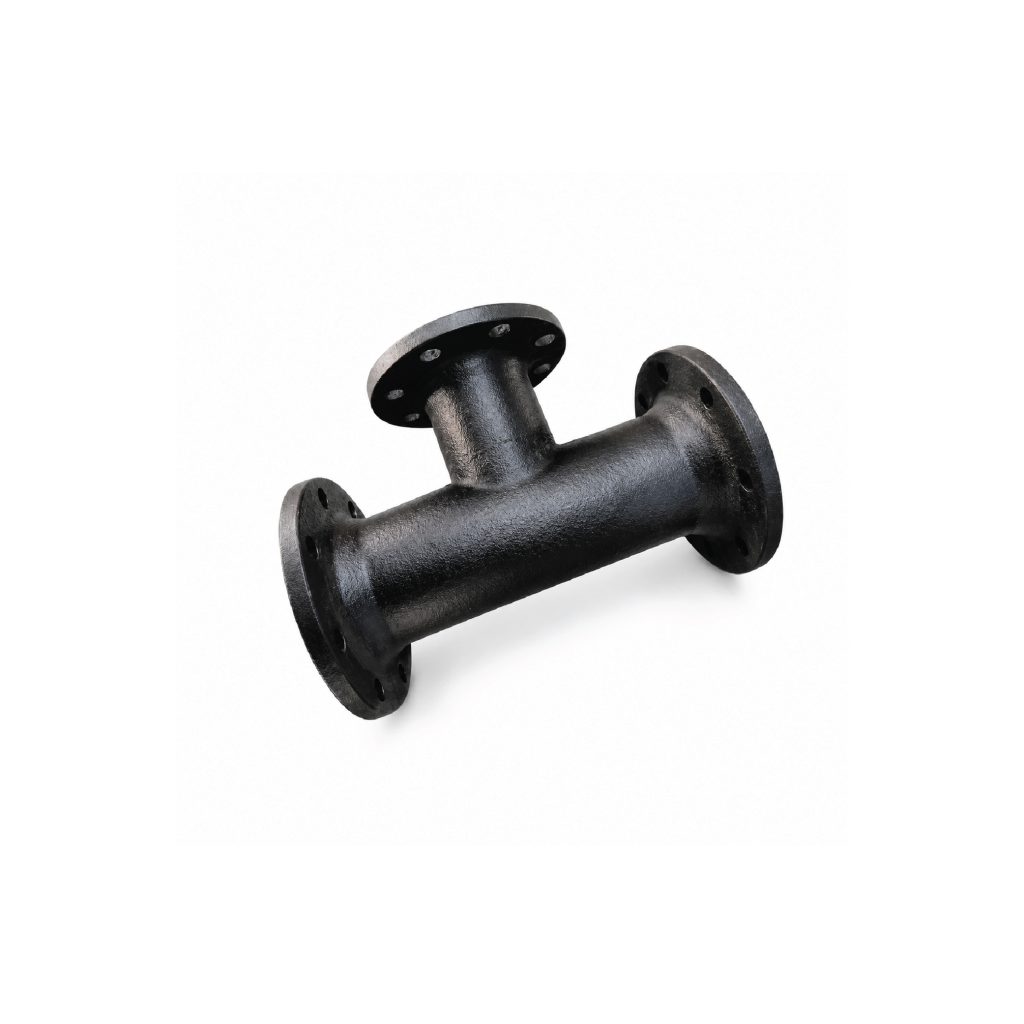

A DI tee creates an additional branch from the main pipeline.
For example:
DN300 main × DN150 branch
The fitting allows the DN300 pipeline to continue while creating a DN150 branch for another network connection.
Configurations may include socket and flanged arrangements depending on project requirements.
Typical applications:
Network extensions

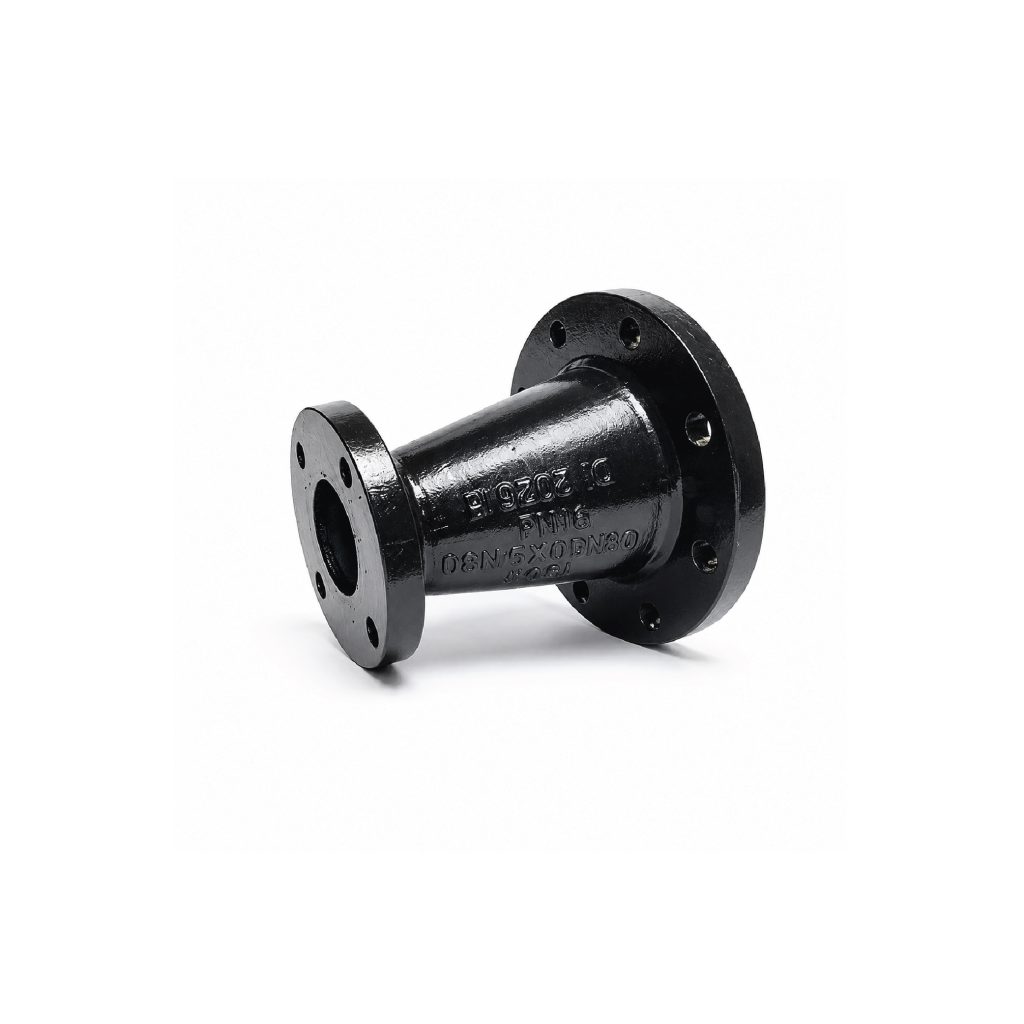

A reducer connects two different nominal pipe sizes.
For example:
DN300 → DN200
Reducers are frequently required around:
Both socket and flanged configurations may be specified.

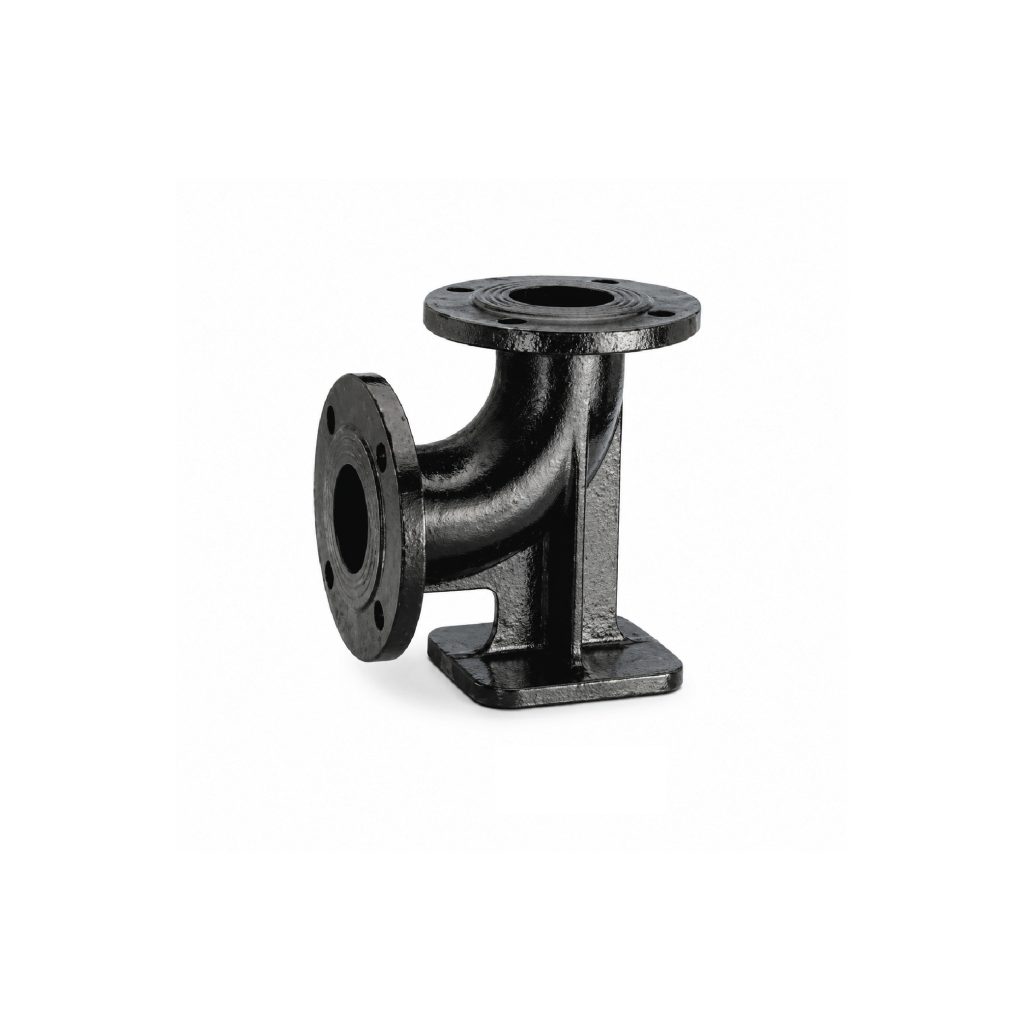

A duckfoot bend is generally used where the pipeline changes between vertical and horizontal orientation and where the fitting configuration requires a supported base.
They are commonly encountered around vertical pipework, plant installations and specific valve or hydrant arrangements.
A flanged socket allows a socket-type pipeline to transition to a flanged connection.
This is useful when connecting a DI pipeline to equipment such as:

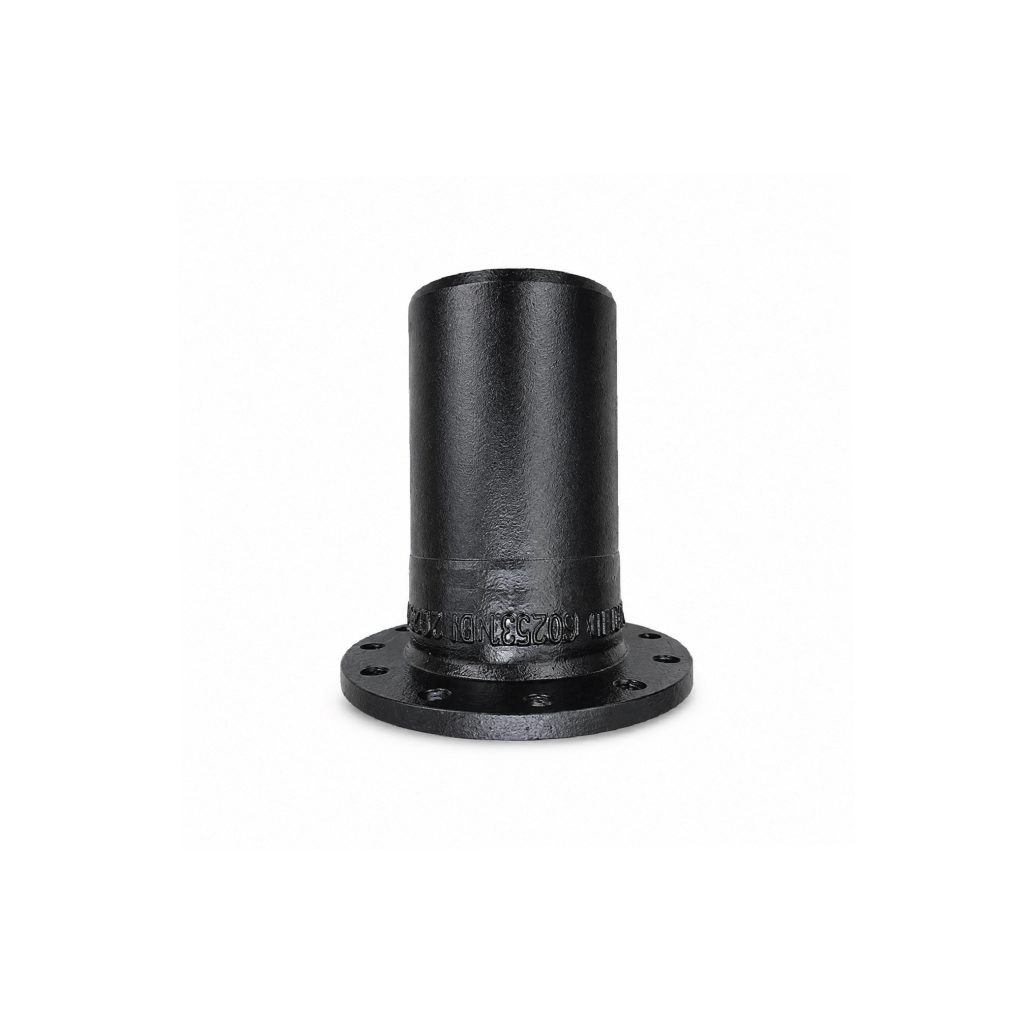

A flange spigot provides a transition between a flanged connection and a spigot-type connection.
Correct dimensions and joint compatibility must be confirmed before installation.

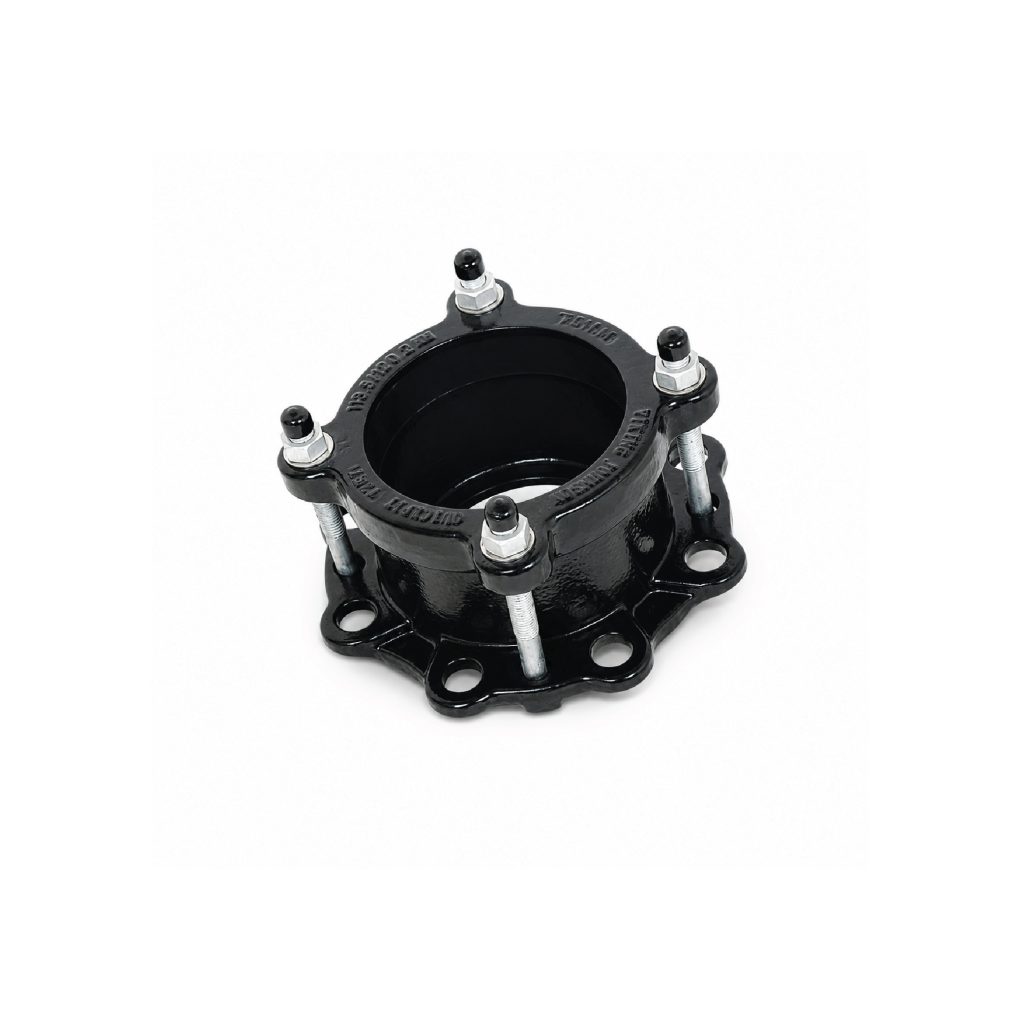

A flange adaptor provides a mechanical transition between a plain-ended compatible pipe and flanged equipment.
It can be particularly useful when connecting pipelines to valves or when making modifications to existing infrastructure.
Before ordering, identify the following.
Ensure both main and branch sizes are specified.
Instead of ordering simply:
“DI Tee 300mm”
provide:
“DI Tee DN300 × DN150”
where appropriate.
If you are unsure how DN relates to pipe dimensions or project specifications, see our ductile iron pipe sizes and specifications guide.
Specify whether the required fitting is:
The fitting must be suitable for the intended pipeline pressure and applicable specification.
When connecting to valves or equipment, confirm flange drilling and dimensional compatibility.
Two components described as the same nominal diameter may still be incompatible if the flange requirements differ.
Specify the required standard, such as the applicable water-pipeline standard or authority specification.
Confirm any internal lining and external protection required by the specification.
DI fittings can be used across many parts of a water network.
Tees, bends and reducers create branches and accommodate changes in pipeline alignment.
Flanged fittings, flange adaptors and pipe sections are used to connect valves and equipment.
Flanged connections are commonly used where equipment must be securely connected and remain accessible for maintenance.
Couplings and adaptors may help connect new infrastructure to existing compatible pipework.
A variety of DI fittings may be used to create complex pipeline configurations between pumps, valves and treatment equipment.
Ductile iron pipes are identified primarily by their nominal diameter or DN.
For example:
| Nominal Size | Common Reference |
|---|---|
| DN100 | 100 mm |
| DN150 | 150 mm |
| DN200 | 200 mm |
| DN300 | 300 mm |
| DN500 | 500 mm |
| DN600 | 600 mm |
| DN1000 | 1000 mm |
DN is a nominal designation and should not automatically be interpreted as an exact measured internal or external diameter.
Actual dimensions depend on the applicable standard and product design.
Selecting the correct diameter involves more than simply choosing a DN. See our complete guide to ductile iron pipe sizes and specifications for pipe classes, joint types and specification terminology.
One common source of confusion when specifying DI pipe is the difference between:
Specifications such as C25, C30, C40 or legacy terms such as K9 should not simply be selected based on which number appears larger.
Project engineers should consider the applicable standard, design pressure, surge pressure, external loading, pipe diameter and project specification before selecting a pipe.
Where a consultant or water authority has issued a specification, that document should take priority over general product descriptions.
If you are preparing an enquiry or BOQ, our DI pipe size and specification guide explains how to provide the information a supplier needs.
For Malaysian water infrastructure projects, one important standard is:
The actual standard required for a project should always be confirmed against the consultant’s specification, water authority requirements and applicable approval requirements.
The iron itself is only one component of a complete DI piping system.
Depending on the product specification, DI pipes may incorporate:
The required protection system depends on factors such as:
For aggressive environments, additional protection may be specified.
Both DI and HDPE are widely used in modern water infrastructure, but they have different characteristics.
| Consideration | Ductile Iron | HDPE |
|---|---|---|
| Structural rigidity | High | Flexible |
| Jointing | Push-in, flange and specialised joints | Butt fusion, electrofusion and mechanical |
| Large valves/fittings integration | Very suitable | Adaptors often required |
| Installation flexibility | Moderate | High |
| Above-ground structural stability | Strong | Requires appropriate design |
| Corrosion consideration | Protective system important | Does not rust |
| Typical use | Distribution and transmission mains | Distribution, trenchless and flexible installations |
There is no universal winner.
The better material depends on project conditions.
DI pipes are frequently used to transport treated water through municipal distribution networks.
Larger diameter pipes can transport significant volumes of water between treatment facilities, reservoirs and distribution zones.
Flanged DI pipework and fittings can provide strong connections around pumps, valves and related mechanical components.
DI systems can be incorporated into inlet, outlet and process-related water pipework depending on the design specification.
DI fittings, flange adaptors and flanged pipe sections are commonly used around isolation valves and other equipment installed inside valve chambers.
Suitable DI pipeline systems may also be used for fire protection water networks where specified.
Providing complete information helps avoid incorrect product selection and reduces quotation delays.
Send us:
For larger projects, sending the BOQ, technical specification or tender document is usually the easiest approach.
If you are comparing project costs, you may also read our guide to ductile iron pipe prices in Malaysia and the main factors that influence a quotation.
Heap Wah Barakah supports Malaysia’s plumbing, construction and water infrastructure industries with a comprehensive range of pipes, fittings, valves and related waterworks products.
Instead of sourcing individual components from multiple suppliers, customers can discuss complete pipeline requirements with our project team.
Whether your project requires DI pipes, bends, tees, reducers, valves, flange adaptors or complementary water infrastructure components, our team can help identify suitable products according to the required specifications.
If you are currently sourcing for a project, learn more about Heap Wah Barakah as a ductile iron pipe supplier in Malaysia.
Send Heap Wah Barakah your:
BOQ • pipe schedule • technical specification • required sizes • quantities • project location
and our team can assist with product selection and quotation.
What is DI pipe?
DI pipe is short for ductile iron pipe, a strong metallic pipe widely used in water distribution and infrastructure systems.
Is ductile iron suitable for potable water?
Ductile iron pipe manufactured, lined, tested and approved for the relevant potable water application can be used for drinking water systems.
What sizes of ductile iron pipe are available?
DI pipes are manufactured across a wide range of nominal diameters. Exact sizes available depend on the manufacturer, product series and project specification.
See our DI pipe size guide for more information.
What fittings are available for ductile iron pipes?
Common fittings include bends, tees, reducers, duckfoot bends, flange sockets, flange spigots, couplings and flange adaptors.
See our full ductile iron pipe fittings guide.
Is K9 the same as PN16?
No. K-class and PN terminology describe different aspects of a piping system and should not be treated as interchangeable.
How can I get a quotation?
Send Heap Wah Barakah the pipe size, quantity, required specification and project location. For project requirements, you may also submit your BOQ or technical specification through our ductile iron pipe supplier Malaysia page.
